KEW catalogue

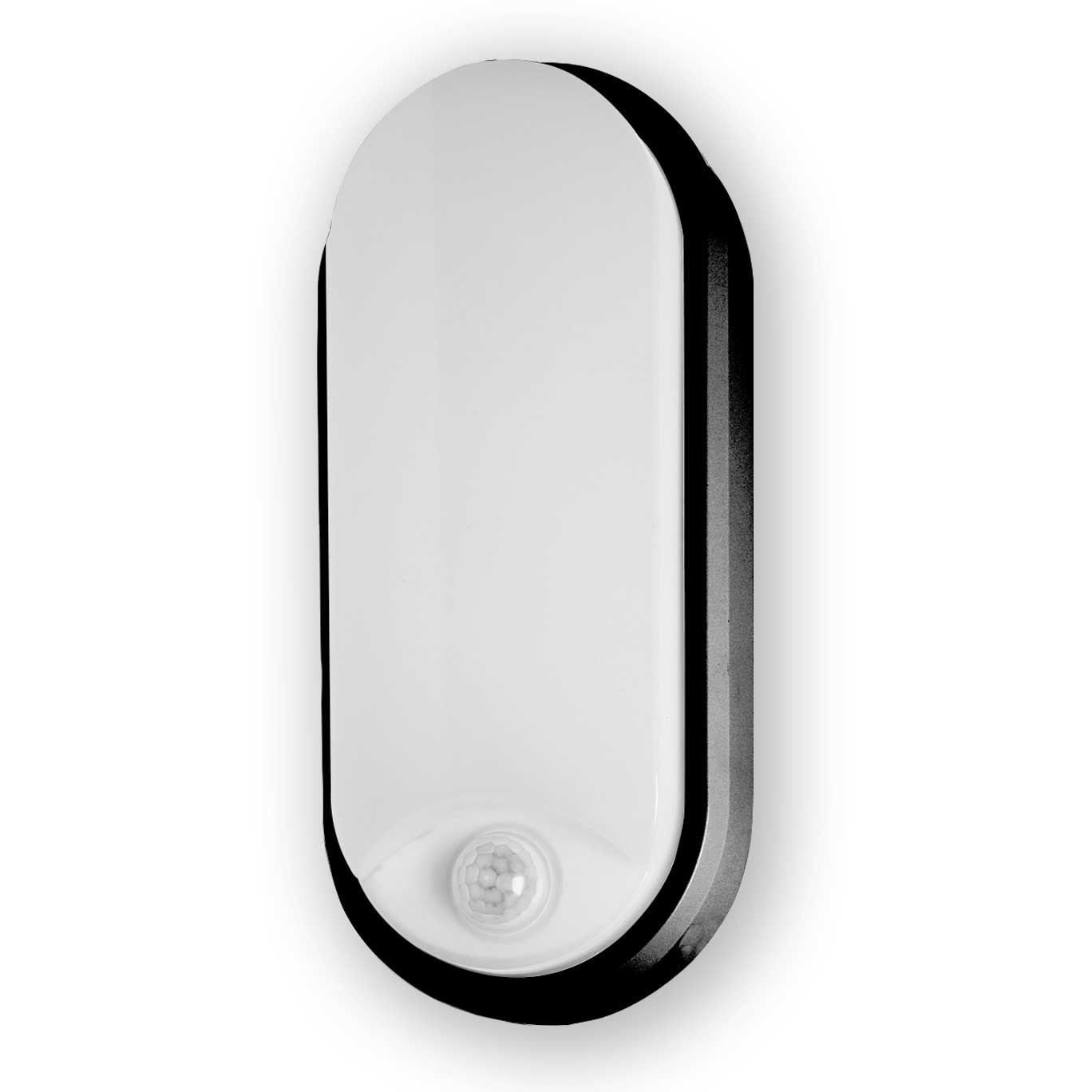

Source SOV SEN BL/WH CCT oval LED bulkhead with PIR sensor
Source · SGD Lighting
No stock / backorder
Selectable-output oval LED bulkhead with 3000K, 4000K or 6500K CCT and integrated PIR sensing, supplied with black or white trim options.
SOV SEN BL/WH CCT is an oval LED bulkhead with selectable 9W, 12W or 18W output, selectable 3000K, 4000K or 6500K colour temperature, and an integrated PIR sensor.
- KEW code
- 2D18LED/CCT/O/PIR
- Brand
- Source
- Manufacturer
- SGD Lighting
- MPN
- SOV SEN BL/WH CCT
- Category
- Lighting
- Specification
- Product type: oval LED bulkhead with integrated PIR sensor Selectable power: 9W, 12W or 18W Output: 1100lm, 1500lm or 2000lm respectively Selectable colour temperature: 3000K, 4000K or 6500K Input: 220-240V AC Efficiency: 110lm/W PIR detection range: up to 4m; maximum mounting height: 3m PIR detection angle: 120 degrees Ambient-light settings: disabled or 25 lux Hold-time settings: 5 seconds, 90 seconds, 5 minutes or 10 minutes Standby settings: 0 seconds, 10 seconds, 15 minutes or infinity Dimensions: 230mm x 105mm x 55mm Beam angle: 115 degrees Lamp life: 50,000 hours; 3-year guarantee Supplied with black and white trim options Non-dimmable
- Feature
- Selectable 9W, 12W or 18W output
- Feature
- Selectable 3000K, 4000K or 6500K CCT
- Feature
- Integrated PIR sensor
- Feature
- 1100lm, 1500lm or 2000lm output
- Feature
- Oval 230mm x 105mm x 55mm housing
- Feature
- Black and white trim options
- Data sheet
- Open technical sheet
