KEW catalogue

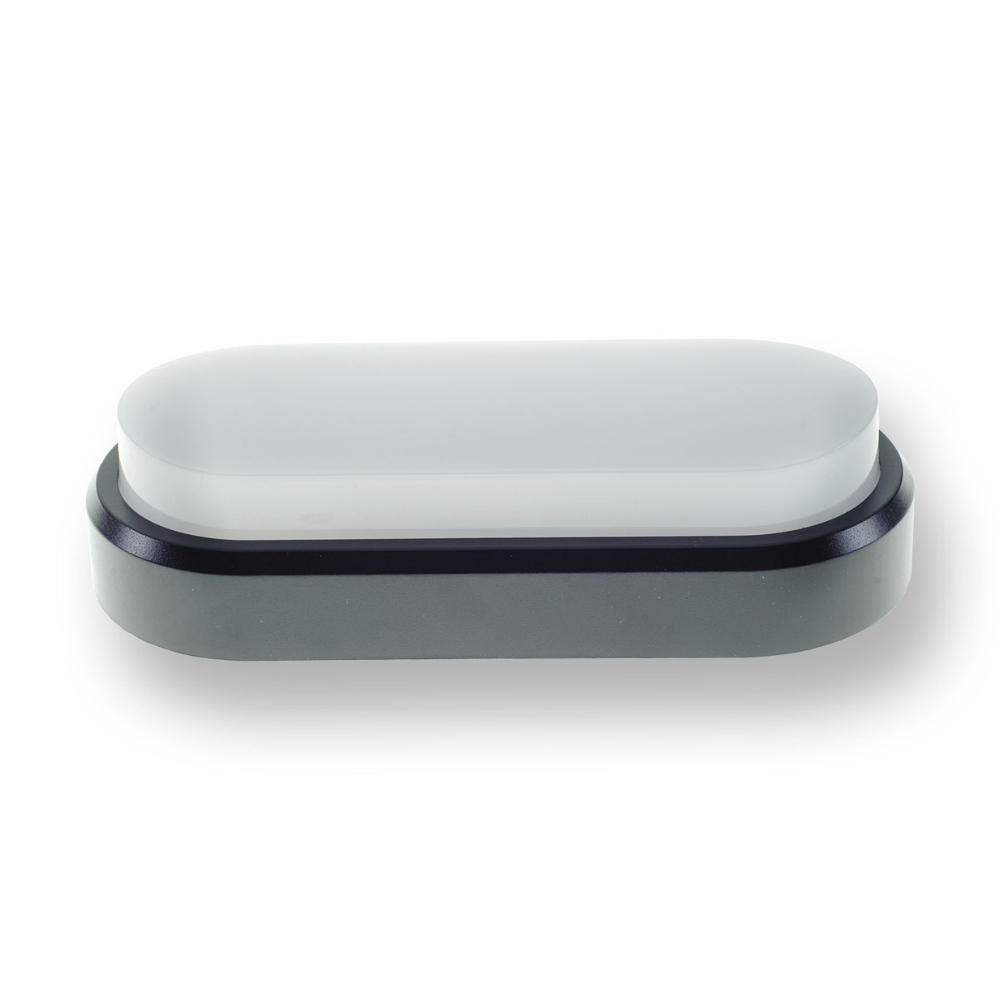

Source SOVLED BL/WH CCT 9/12/18 W oval LED bulkhead, IP65
Source · SGD Lighting
2D 18W LED 9/12/18W CCT OVAL
- KEW code
- 2D18LED/CCT/O
- Brand
- Source
- Manufacturer
- SGD Lighting
- MPN
- SOVLED BL/WH CCT
- Category
- Lighting
- Specification
- Product type: Complete oval LED bulkhead fitting. Manufacturer: SGD Lighting / Source. Model: SOVLED BL/WH CCT. Light source: Integral LED light source and control gear included. Selectable power: 9 W, 12 W or 18 W. Luminous flux: 1,100 lm at 9 W, 1,500 lm at 12 W and 2,000 lm at 18 W. Colour temperature: Selectable 3000 K, 4000 K or 6500 K. Input voltage: 220-240 V AC. Ingress protection: IP65. Dimensions: 230 mm x 105 mm x 55 mm depth. Trim colours: White and black trims supplied. Dimming: Non-dimmable.
- Feature
- Complete oval bulkhead with integral LED equipment.
- Feature
- Selectable 9 W, 12 W or 18 W output.
- Feature
- Selectable 3000 K, 4000 K or 6500 K colour temperature.
- Feature
- IP65-rated for suitable indoor and outdoor locations.
- Feature
- White and black trims supplied.
- Feature
- Supplied as a complete fitting ready for installation.
