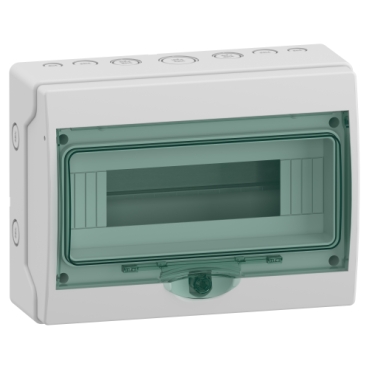

Schneider Electric mini Kaedra 12-module IP65 enclosure
Schneider Electric
Low stock
Surface-mounted IP65 enclosure for twelve 18 mm modular devices, supplied with two terminal blocks.
Use this surface-mounted enclosure to house twelve 18 mm modular devices in one row. It is weatherproof and supplied with two terminal blocks with eight outgoing connections.
- KEW code
- 13444
- Brand
- Schneider Electric
- Manufacturer
- Schneider Electric
- MPN
- 13444
- Category
- Enclosures & Boxes
- Specification
- Product type: Weatherproof modular enclosure. Module capacity: 12 modules, each 18 mm wide, in one row. Ingress protection: IP65. Impact resistance: IK09. Mounting: Surface-mounted with DIN rail. Electrical insulation: Class II, double insulated. Body material: Self-extinguishing polymer. Body colour: Light grey (RAL 7035) with transparent green door. Terminal blocks: 2, with 8 outgoers each. Cable entry: 7 pre-cutouts, from the top or bottom. Dimensions (W × H × D): 267 × 200 × 112 mm. Rated current: Up to 63 A. Standards: IEC 61439-3.
- Feature
- Holds twelve 18 mm modular devices in one row.
- Feature
- IP65 ingress protection and IK09 impact resistance.
- Feature
- Surface-mounted enclosure with DIN rail and seven cable-entry pre-cutouts.
- Feature
- Two terminal blocks with eight outgoers each.
- Feature
- Self-extinguishing polymer body with a transparent green door.
- Feature
- 267 × 200 × 112 mm enclosure, rated up to 63 A.
