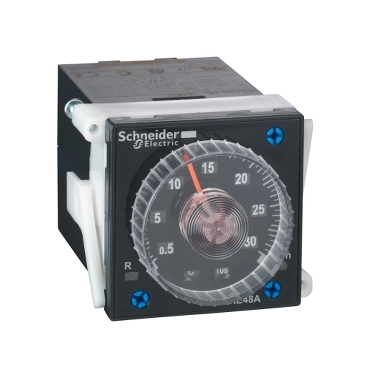

Schneider Electric RE48AML12MW multifunction timer relay, 24–240 V AC/DC
Schneider Electric
In stock
A panel timer relay used to switch control circuits after a set delay. It suits common 24 V to 240 V AC/DC control panels and uses an 11-pin plug-in base.
Schneider Electric Harmony Time RE48 multifunction timer relay with 11-pin plug-in connection, 24-240 V AC/DC supply, two changeover contacts, and selectable timing ranges from 0.02 seconds to 300 hours.
- KEW code
- 11PR
- Brand
- Schneider Electric
- Manufacturer
- Schneider Electric
- MPN
- RE48AML12MW
- Category
- Control Gear
- Specification
- Product type: multifunction timer relay. Manufacturer range: Schneider Electric Harmony Time RE48. MPN: RE48AML12MW. Supply voltage: 24-240 V AC/DC, 50/60 Hz. Connection: 11-pin plug-in base. Output contacts: two changeover contacts / DPDT. Contact rating: 5 A maximum. Timing range: 0.02 seconds to 300 hours. Front size: 48 x 48 mm. Protection: IP40 housing and IP50 front face.
- Feature
- Wide 24-240 V AC/DC supply range.
- Feature
- Four selectable timing functions.
- Feature
- Two changeover relay contacts.
- Feature
- Front-panel timing dial and status indication.
- Feature
- 11-pin plug-in connection.
