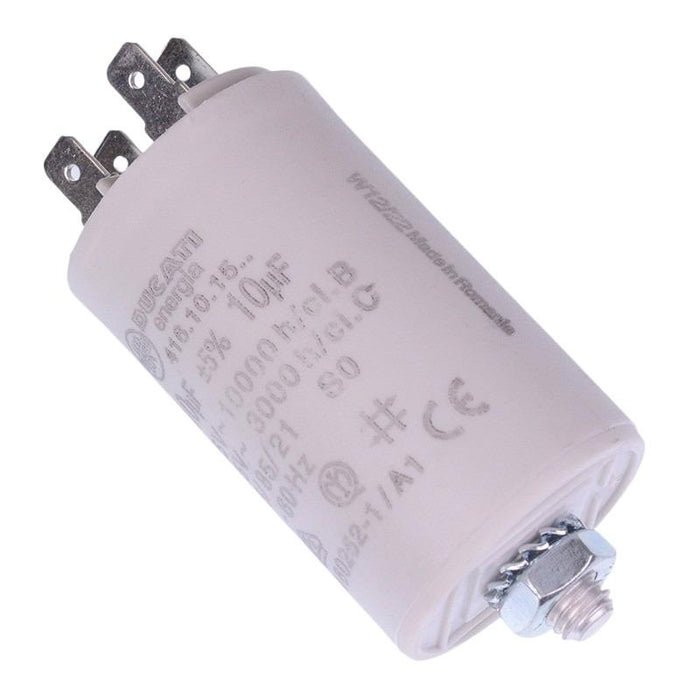

Ducati Energia 4.16.10.15.64 10 µF Motor-Run Capacitor, 450 V AC
Ducati Energia · Ducati Energia
Ducati Energia 4.16.10 motor-run film capacitor with 10 µF (10 uF) capacitance and a 450 V AC rating. The plug-in polypropylene capacitor is intended for compatible single-phase motor circuits.
- KEW code
- 10MF
- Brand
- Ducati Energia
- Manufacturer
- Ducati Energia
- MPN
- 4.16.10.15.64
- Category
- Capacitors
- Specification
- Product type: metallised polypropylene motor-run film capacitor. Capacitance: 10 µF (10 uF). Rated voltage: 450 V AC. Tolerance: ±5%. Series: Ducati Energia 4.16.10. Mounting: plug-in / snap-in. Terminals: quick-connect, two-pin. Approximate dimensions: 36 mm diameter × 58 mm high. Dielectric: polypropylene film with self-healing construction. Manufacturer part number: 4.16.10.15.64.
- Feature
- 10 µF (10 uF) capacitance.
- Feature
- 450 V AC rating.
- Feature
- ±5% tolerance.
- Feature
- Plug-in two-pin quick-connect format.
- Feature
- 36 mm diameter × 58 mm high approximate case size.
